Packaging Classification
Packaging encompasses a wide variety of types, materials, methods, and applications.
By Material: Paper packaging, plastic packaging, metal packaging, glass packaging, wooden packaging, and packaging made from other materials such as hemp, cloth, bamboo, rattan, or grass. The can manufacturing industry falls under metal packaging. Classification by material is commonly used.
By Function: Industrial packaging (for transportation, storage, and distribution) and commercial packaging (for consumer-facing promotion or advertising).
By Form: Primary packaging (individual item), inner packaging, and outer packaging.
By Method: Waterproof/moisture-proof packaging, high-barrier packaging, rust-proof packaging, anti-static packaging, water-soluble packaging, UV-resistant packaging, vacuum packaging, insect-resistant packaging, cushioning packaging, insulated packaging, antibacterial packaging, anti-counterfeit packaging, nitrogen-flushed packaging, deoxidized packaging, etc.
By Content: Food packaging, machinery packaging, pharmaceutical packaging, chemical packaging, electronics packaging, military goods packaging, etc.
By Rigidity: Rigid packaging, semi-rigid packaging, and flexible packaging.

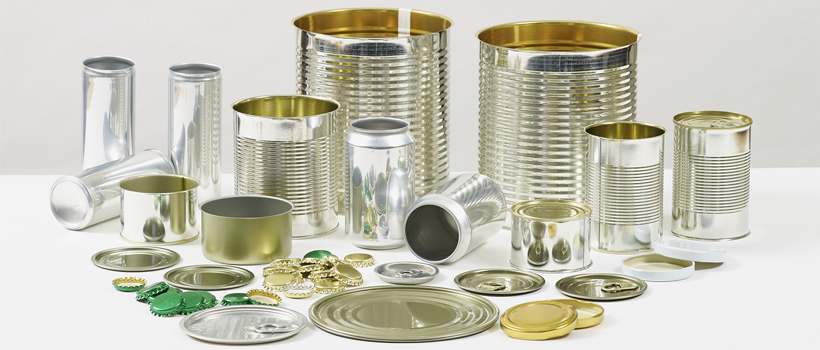

Structure of Metal Packaging Categories (by Downstream Industry)
Beverage Cans (Three-piece cans, Two-piece cans)

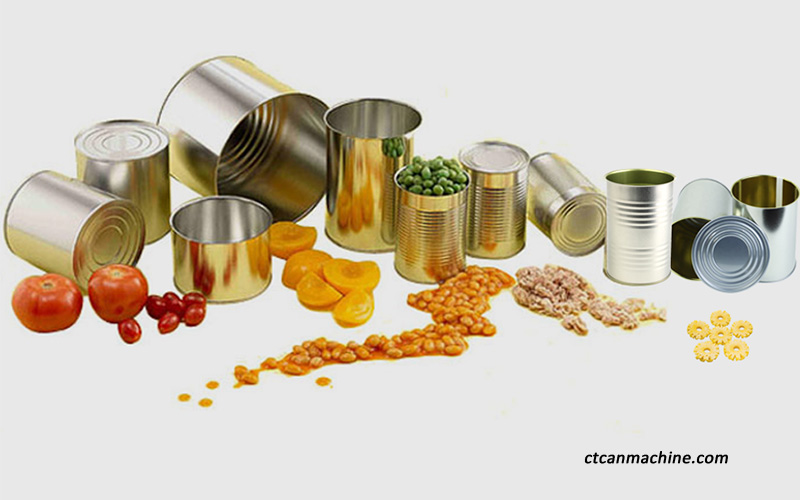

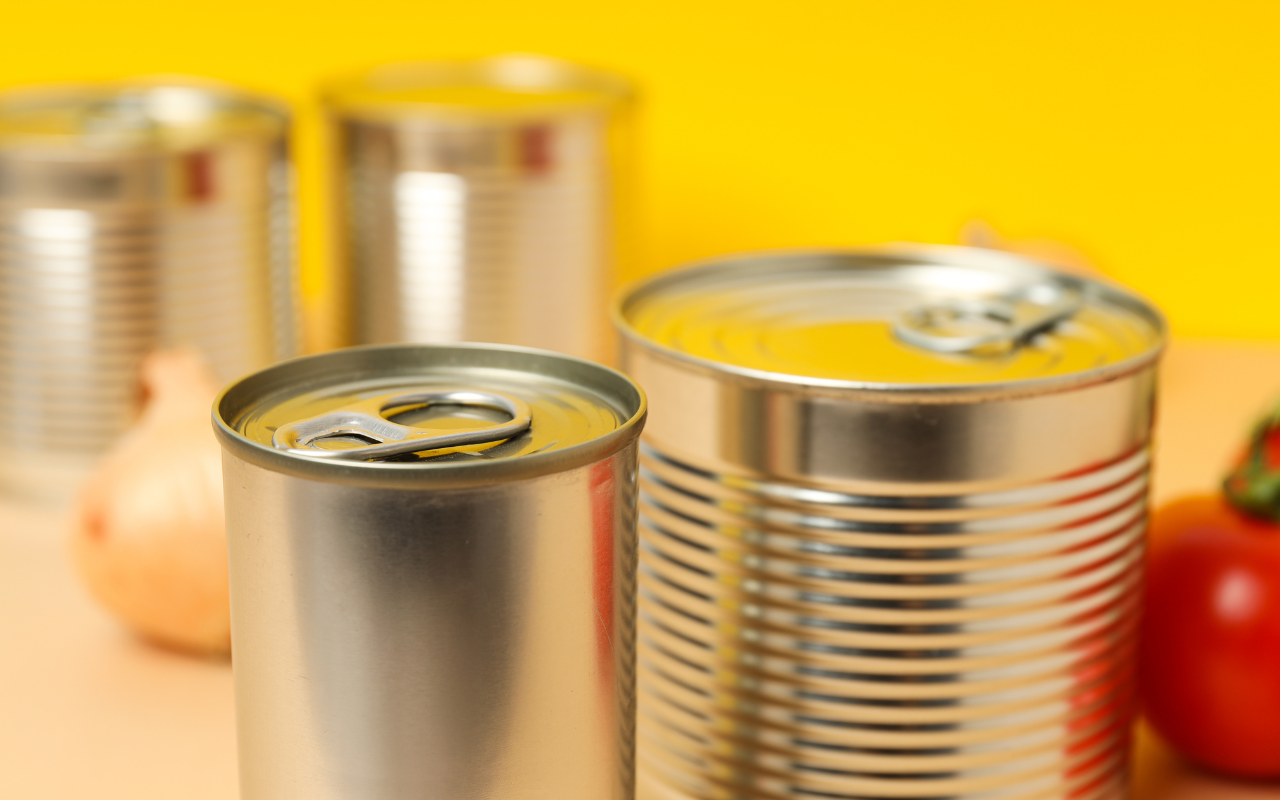

Food Cans
Milk Powder Cans
Tinplate Aerosol Cans
Aluminum Aerosol Cans
Miscellaneous Cans
Chemical Cans (typically three-piece cans)
Printed Sheets (for cans)
Steel Drums
Lids/Closures
Two-Piece Can Manufacturing Processes and Equipment:
Two-piece cans include Drawn and Ironed (DI) Cans and Drawn and Redrawn (DRD) Cans.
Drawn and Ironed (DI) Can:
Formed by stretching and thinning the material in a press using dies. The initial blank thickness is 0.3–0.4mm; after forming, the sidewall thickness is 0.1–0.14mm, while the base remains near the original thickness. Primarily used for beer and carbonated beverage packaging.
Process Flow:
- Raw Material (Sheet) → Lubrication → Blanking → Cupping & Drawing → Ironing (1–3 stages) → Trimming → Washing → Drying → Internal/External Spray Coating → Necking/Flanging (necking may be omitted for straight-wall cans) → Decoration/Printing.
Equipment:
- Sheet Feeder, Lubricator, Multi-function Press, Re-lubricator, Shear, Blank Stacker, Bodymaker.
Drawn and Redrawn (DRD) Can:
Also known as Draw-Redraw cans. Includes shallow-drawn (requiring 1-2 draws) and deep-drawn (requiring multiple redraws) cans. The number of redraws depends on material properties and can height. Subsequent processes are similar to DI cans. Shallow-drawn cans include round, oval, square, and other shaped cans; deep-drawn cans are typically round only. Materials: 0.2–0.3mm aluminum or tinplate.
Process Flow:
Raw Material (Sheet/Coil) → Wave Cutting → Lubrication → Blanking → Cupping → Redrawing (1 or more times) → Base Forming → Flange Trimming → Inspection.
Equipment:
Press with matching dies.

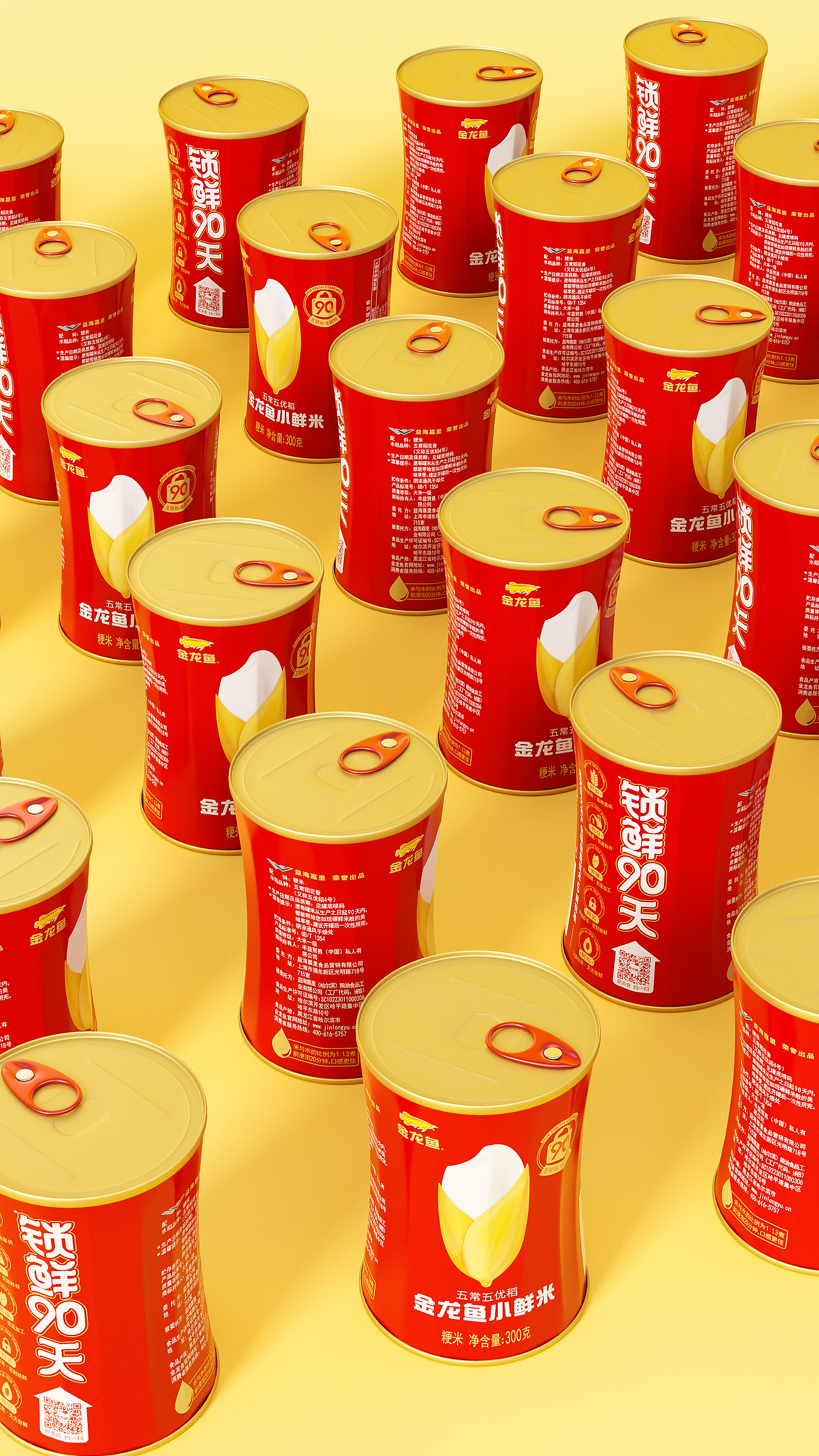

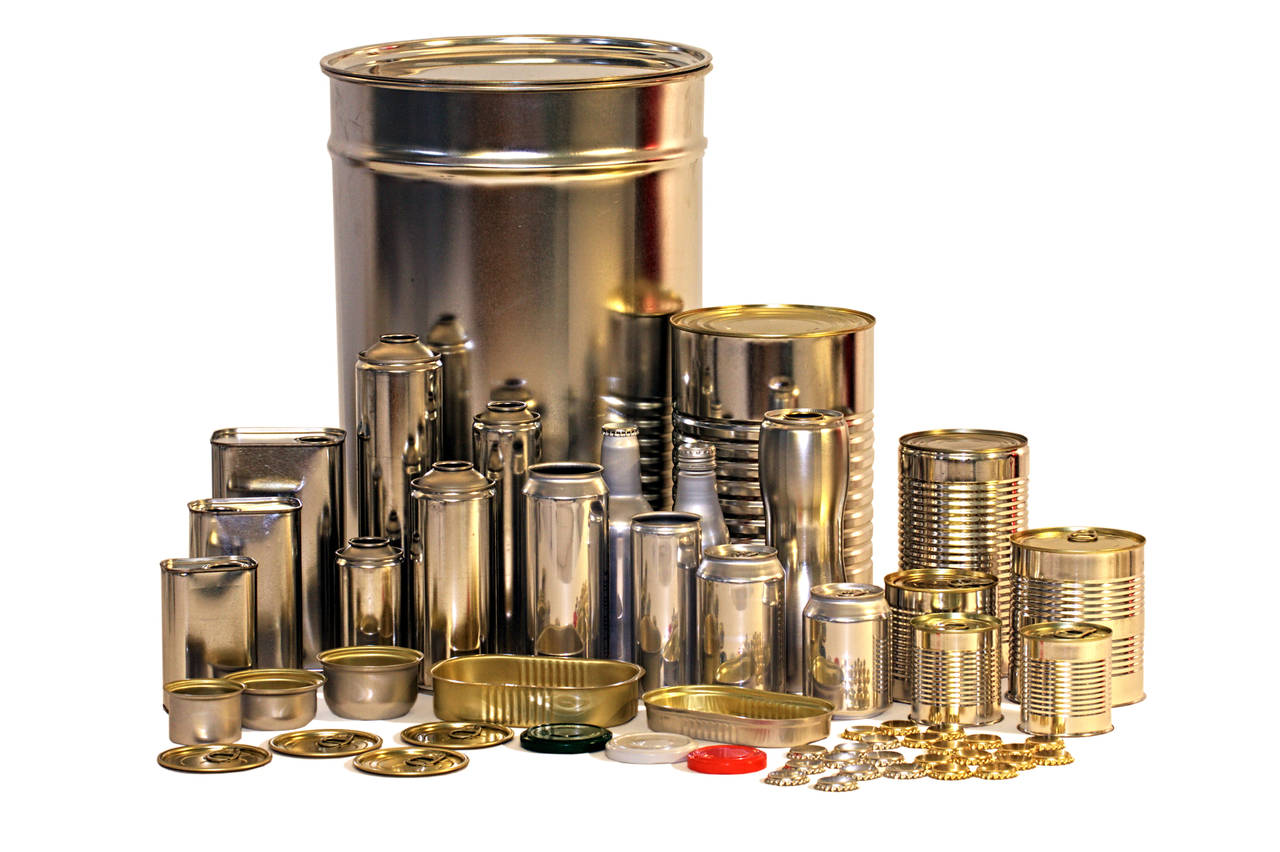

Three-Piece Can Manufacturing Processes and Equipment:
Three-piece can production lines include body, end, ring (for some types), and bottom production lines.
Can Body Production Line:
Process Flow:
Sheet Cutting → Feeding → Bending/Roll Forming → Lap Seam Positioning → Resistance Welding → Stripe Coating (Seam Repair) → Drying → Flanging → Beading → Double Seaming.
Equipment:
Slitter, Bodymaker (Roll Former), Seam Welder, Conveyor/External Coater, Induction Dryer, Combo Machine (performs flanging, beading, forming). (Chengdu Changtai Intelligent offers high-value, easy-to-operate automatic three-piece can body welders, coaters, and dryers).
Can End, Ring, and Bottom Production Lines:
Process Flow (End/Ring):
Automatic Feeding → Blanking → Curling → Compound Lining → Drying/Curing.
Equipment:
Automatic Gantry Press, Curling and Compound Lining Machine.

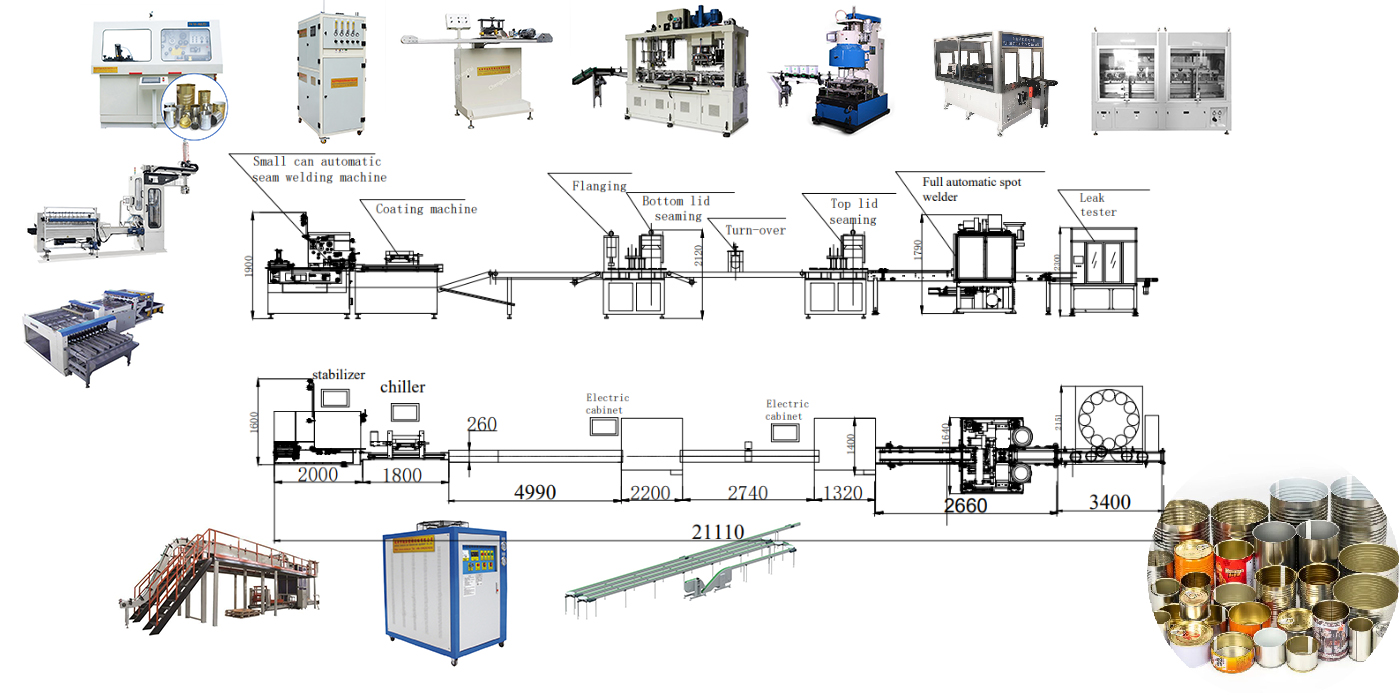

layout equipment of small round can making machinery
